SKU: Model: BE8228-A
Baby Monitor System with Mobile Transceiver, Flash Receiver, and Bed Shaker
When your baby needs attention or a mobile notification comes through, the Flash Receiver alerts you with bright coloured lights and strong bed shaker vibrations. The Bellman Assistant app also delivers alerts directly to your smartphone.
How Visit Alerting System Works ❯
VAT Relief is available if you make a declaration in your basket
Couldn't load pickup availability
Works Out of the Box
Swedish Designed
Fast, Free Shipping
Two Year Warranty
Description
Description
Stay connected to your little one with bright visual alerts, strong bed shaker vibrations, and smartphone notifications. This system is designed for people who are deaf, hard of hearing, or living with mild to profound hearing loss.
This preassembled bundle includes the Baby Monitor Transmitter, Flash Receiver, Bed Shaker, and Mobile Phone Transceiver. Setup is simple, and no Wi-Fi connection is needed.
When your baby needs attention, the Flash Receiver provides bright coloured light signals and activates the included bed shaker for strong vibration alerts. The Bellman Visit app also delivers alerts directly to your smartphone through the Mobile Phone Transceiver.
Incoming mobile calls and app notifications can trigger the Flash Receiver through the Mobile Phone Transceiver, extending accessible alerts beyond the original household event.
This bundle can be used on its own or expanded with additional Bellman transmitters for more household alerts.
In the Box
In the Box
● Baby Monitor Transmitter
Detects baby sounds and signals receivers
Learn More❯
● Mobile Phone Transceiver
Connects your alerting system to the Bellman Assistant app through Bluetooth
Learn More❯
● Flash Receiver
Alerts with powerful flashes and colour-coded indicator icons
Learn More❯

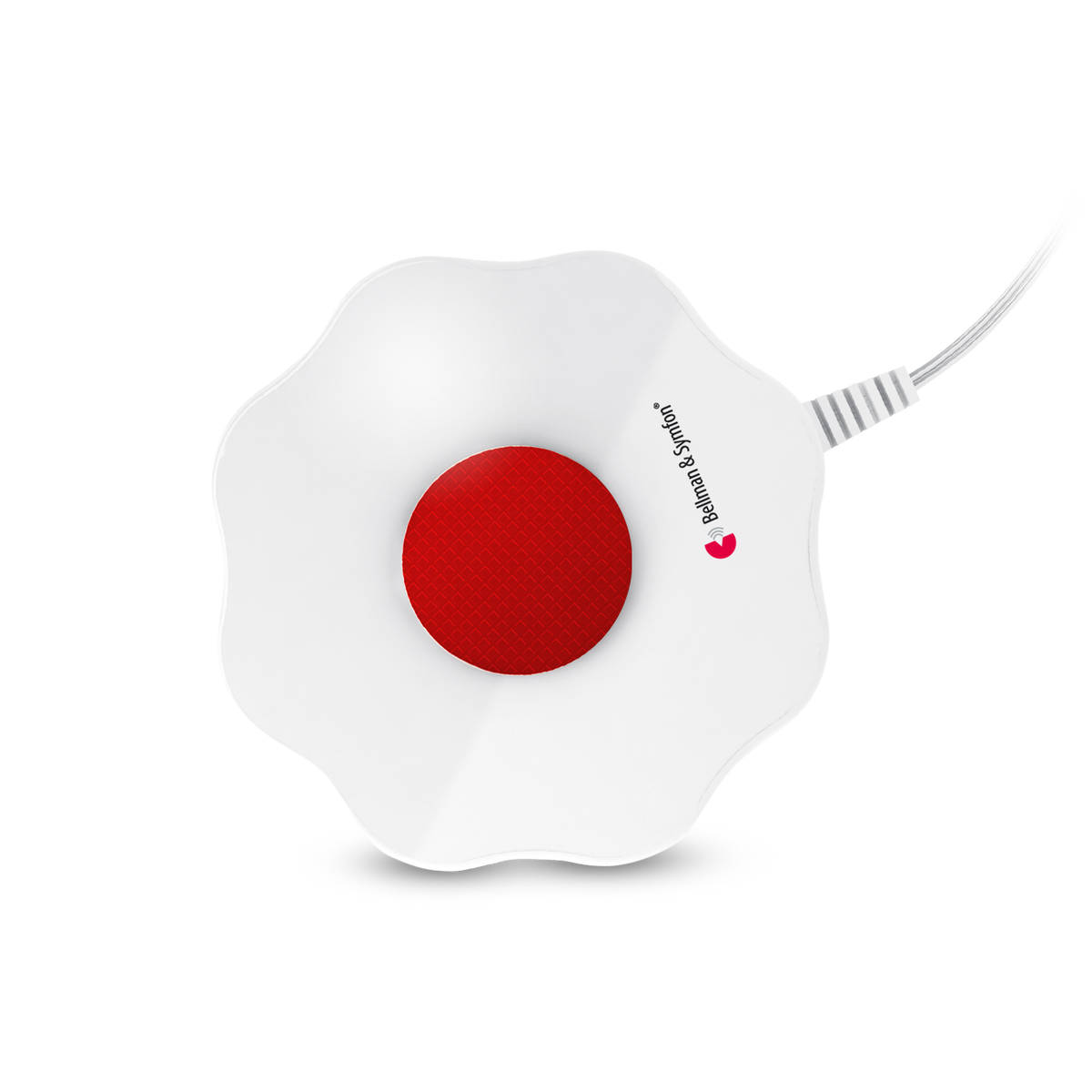

● Bed Shaker
Wired shaker, place under pillow or mattress
Learn More❯
● RJ11 Cable
Included for Mobile Phone Transceiver setup and wired connections
● Mounting Equipment
Included where required for the transmitter and receiver
● Power Supplies
Included for the Mobile Phone Transceiver and Flash Receiver
● Batteries
Included for all relevant products and backup power
Specifications
Specifications
● Sensitivity
Adjustable audio detection (High / Medium / Low)
● Delay Settings
1, 10, or 30 seconds
● Power
2 × 1.5V AA lithium or alkaline batteries
● Battery Life
~6 months (alkaline), ~1 year (lithium)
● Inputs
3.5 mm external trigger input
● Range
Up to 820 ft (open field)
● Size
4.0 × 2.6 × 1.1 in
● Weight
4.2 oz
● Mobile Alerts
Notifies receivers when mobile calls or messages arrive
● App Compatibility
Free Bellman app for iOS and Android
● Bluetooth Range
Up to 650 ft (open field)
● Receiver Range
Up to 492 ft (open field)
● Connections
Bluetooth, 433 MHz signal, RJ11 input/output, external trigger
● Power Supply
5 V DC / 1000 mA adapter
● Backup Battery
2 × 1.5 V AA alkaline (included)
● Size
3.9 × 2.6 × 1.1 in
● Weight
4.1 oz
● Compatibility
iOS 15+ / Android 8.0+ | iPhone 6S or newer
● Flash Receiver
Built-in flash light ~ 30 Candela Xenon Light
● Signal Identification
Coloured LEDs for different alert types
● Connections
Inputs for landline phone, mobile phone sensor, and bed shaker
● Controls
Mute/Test button; rotating light top
● Power Supply
7.5 VDC / 1.5 A adapter
● Power Consumption
750 mA active / 8 mA idle
● Battery Backup
4 × 1.2 V AAA NiMH rechargeable (~48 h operation)
● Radio Range
Up to 820 ft (open field)
● Size
6.1 × 3.1 in
● Weight
10.8 oz
Resources
Resources
● Videos
How-To: Mobile Phone Transceiver❯
How-To: Baby Cry Tx❯
How-To: Flash Rx❯
How-To: Bed Shaker❯
● Datasheets
Mobile Phone Transceiver❯
Baby Cry Tx❯
Flash Rx❯
Bed Shaker❯
● User Manuals
Mobile Phone Transceiver❯
Baby Cry Tx❯
Flash Rx❯
Bed Shaker❯
Features
Reliable radio link
Covers up to 260 ft open field.
Baby proof
Safe and tamper proof design.
Contact mat outlet
Alerts if your baby leaves the bed.*
Settings menu
Adjustable sensitivity and delay.
Features
Bluetooth powered
Up to 250 m coverage, open field.
App controlled
Available for iOS & Android
Seamless communication
Connects your alerting system to your smart device
Multiple compatibility
Supports phones, tablets, and smartwatches
Features
Reliable radio link
Covers up to 260 ft open field.*
Intense light
Alerts you with flashes.
Easy identification
Through coloured lights.
Battery backup
Works even during power outage.
